Glass Railing Systems We Install in Richmond Hill

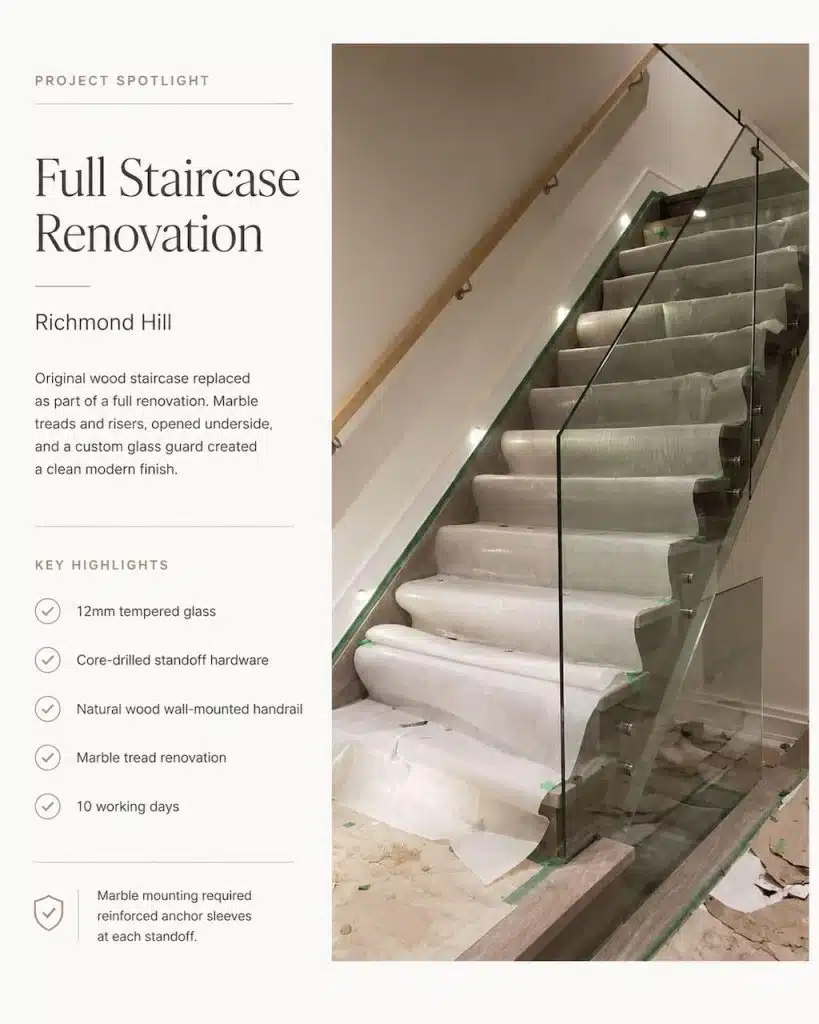

- Frameless Glass (Core-Drilled Standoffs): Glass is held by metal standoff hardware drilled directly through each panel into the tread or stringer. This is the system used in the marble staircase project above, and the right approach for stone, marble, or independently-supported treads where a continuous channel isn’t practical.
- Frameless Glass (Base Shoe Mounted): Tempered glass panels sit in a continuous aluminum or steel channel along the stair edge or floor. A clean option for staircases with a continuous stringer or landing edge to mount into.
- Framed Glass Panels: Glass set within a metal perimeter frame, post to post. More budget-friendly than frameless systems and suited to a more structured, defined look.
- Glass with Wood Cap Rail: Frameless or framed glass topped with a wood handrail rather than metal, as used in the project above where the rail was fixed to the wall alongside the marble stair.
Ontario Building Code Requirements for Glass Railings
Every glass railing installed in Richmond Hill must meet Ontario Building Code guard requirements:
- Guard height: 865 mm to 965 mm above tread nosing where a graspable handrail is required
- Glass type: 12mm tempered or laminated safety glass for guard applications
- Guard openings: no gap may allow a 100 mm sphere to pass through
- Structural loading: guards must resist the minimum lateral load specified under OBC Division B, Part 9
We engineer every glass railing to these figures before fabrication. The City of Richmond Hill requires a permit for railing replacement on most projects involving a structural guard change.
Mounting Glass Railings on Different Stair Materials
The staircase material underneath the glass changes how the railing is engineered.
- Marble and stone treads: Require core-drilled standoffs with reinforced anchor sleeves, since stone is brittle under concentrated point load. This was the approach used in the Richmond Hill project above.
- Wood treads: Accept either base shoe channel or core-drilled standoffs, depending on the stringer design and whether the tread is continuous or independently cantilevered.
- Concrete stairs: Generally the most flexible substrate, compatible with base shoe channel, core-drilled standoffs, or floor-mounted posts.
Starting Costs for Glass Railings in Richmond Hill
| Configuration | Starting From (CAD) |
|---|---|
| Frameless glass, core-drilled standoffs | $240 per linear foot |
| Frameless glass, base shoe mount | $260 per linear foot |
| Framed glass panel system | $180 per linear foot |
| Glass with wood cap rail | $270 per linear foot |
Pricing includes site assessment, templating, fabrication, and installation. Glass fabrication lead times currently run 3 to 6 weeks from order confirmation.
